The eXpanse – A Multi-Purpose ADU / Pre-Fab Gem

eXpanse Studio

GET DETAILS

The eXpanse Studio is our most asked for Innovation that is NOT built on wheels. This unit was specifically built to help fulfill a huge need in the rising housing crisis by building to ADU/ANSI 119.2 code (the eXpanse Studio can be built to meet any local IRC/ADU prefab or modular build code and under the ANSI/NFPA codes 119.2/119.5). We have one word in mind when unveiling this beauty: “Multi-purpose”. This model is going to serve not only as living quarters, but can be used as a home or business office, suite, AirBnB or Vrbo rental. With so many functions and uses, this little gem is your next biggest surprise.

  • Perfect for an ADU, home, office or AirBnB
  • Built on skids, not a trailer
  • Clean, modern design
  • 20’x 10′ model
  • Pricing starts at $59,900 USD

eXpanse 2.0

GET DETAILS

The eXpanse 2.0 is our newest Innovation that is NOT built on wheels – the eXpanse Studio’s big brother. This unit was specifically built to help fulfill a huge need in the rising housing crisis by building to ADU/ANSI 119.2 code (the eXpanse 2.0 can be built to meet any local IRC/ADU prefab or modular build code and under the ANSI/NFPA codes 119.2/119.5), while offering the space of a 1-bedroom apartment. We have one word in mind when unveiling this beauty: “Multi-purpose”. This model is going to serve not only as living quarters, but can be used as a home or business office, suite, AirBnB or Vrbo rental. With so many functions and uses, this not-so-little gem is your next biggest surprise.

  • Perfect for an ADU, home, office or AirBnB
  • Built on skids, not a trailer
  • Clean, modern design
  • 30’x 10′ model
  • Pricing starts at $79,900 USD

Model Details

Choose Model Below

The eXpanse Studio Includes:

    1. Steel Skids – 8″ I-Beams
    2. Framing – 2×4 dimensional lumber; CDX plywood with shed roof
    3. Moisture Barrier – Zip System® rigid-panel Weather Resistant Barrier (WRB)
    4. Exterior Siding – Hardi vertical fiber cement siding, accented with thermally-modified wood
    5. Insulation – Closed-cell spray foam in roof and walls; rigid foam in floor
    6. Inside Cladding – Unpainted Natural Birch Panel
    7. Interior Finish – Low-VOC white
    8. Interior Trim – 1×4 paint grade white
    9. Windows – Black aluminum storefront; one (1) black vinyl fixed
    10. Roofing – Single-ply membrane (TPO)
    11. Flooring – Commercial grade sheet vinyl, wood pattern
    12. Cabinets – White flat cabinet doors with real plywood boxes with soft close cabinet drawer slides and hinges
    13. Hardware – Modern cabinet pulls in satin nickel
    14. Countertops – Solid surface in black
    15. Backsplash – White subway tile
    16. Appliances – Stainless finish under-counter fridge
    17. Kitchen Sink – Drop-in stainless bar sink
    18. Kitchen Faucet – Faucet with pull-down head in satin nickel
    19. Bathroom Sink – Wall-mounted porcelain sink
    20. Bathroom Faucet – Satin nickel
    21. Shower – 48” x 32” fiberglass shower pan and Kohler Choreograph wall panels, both white
    22. Shower Doors – Glass shower doors
    23. Vanity Mirror – Wall-mounted framed mirror with white frame
    24. Bathroom Exhaust Fan – On a dedicated switch, 90-120 CFM
    25. Dual-Flush Toilet – Dual-flush toilet with flange (connection to sewer or septic to be done by the client)
    26. Electric In-Wall Heaters – Two (2) Cadet in-wall heaters with a programmable thermostat; one (1) in the bathroom and one (1) in the living area
    27. Water Heater –19-gallon electric with exterior access
    28. Plumbing Connection – One (1) Freshwater Inlet
    29. Plumbing Source – One (1) Greywater Drain
    30. Power – One (1) 100A 110/115V Inlet
    31. Smoke & CO Detectors – Mounted in the kitchen ceiling
    32. Lighting – LED recessed lights throughout; two (2) LED recessed porch lights
    33. Doors – One (1) interior pocket door; one (1) exterior wood-clad fiberglass door
    34. Extra Storage – Full wardrobe closet in bathroom
    35. Two (2) Exterior Outlets – One (1) high for Christmas lights; one (1) low by the front door
    36. Certification – NFPA 1192 / ANSI A119.2 compliant (the eXpanse Studio can be built to meet any local IRC/ADU prefab or modular build code and under the ANSI/NFPA codes 119.2/119.5)
    37. Warranty – 1 year limited Manufacturer/Builder warranty; all 3rd party warranties provided at completion

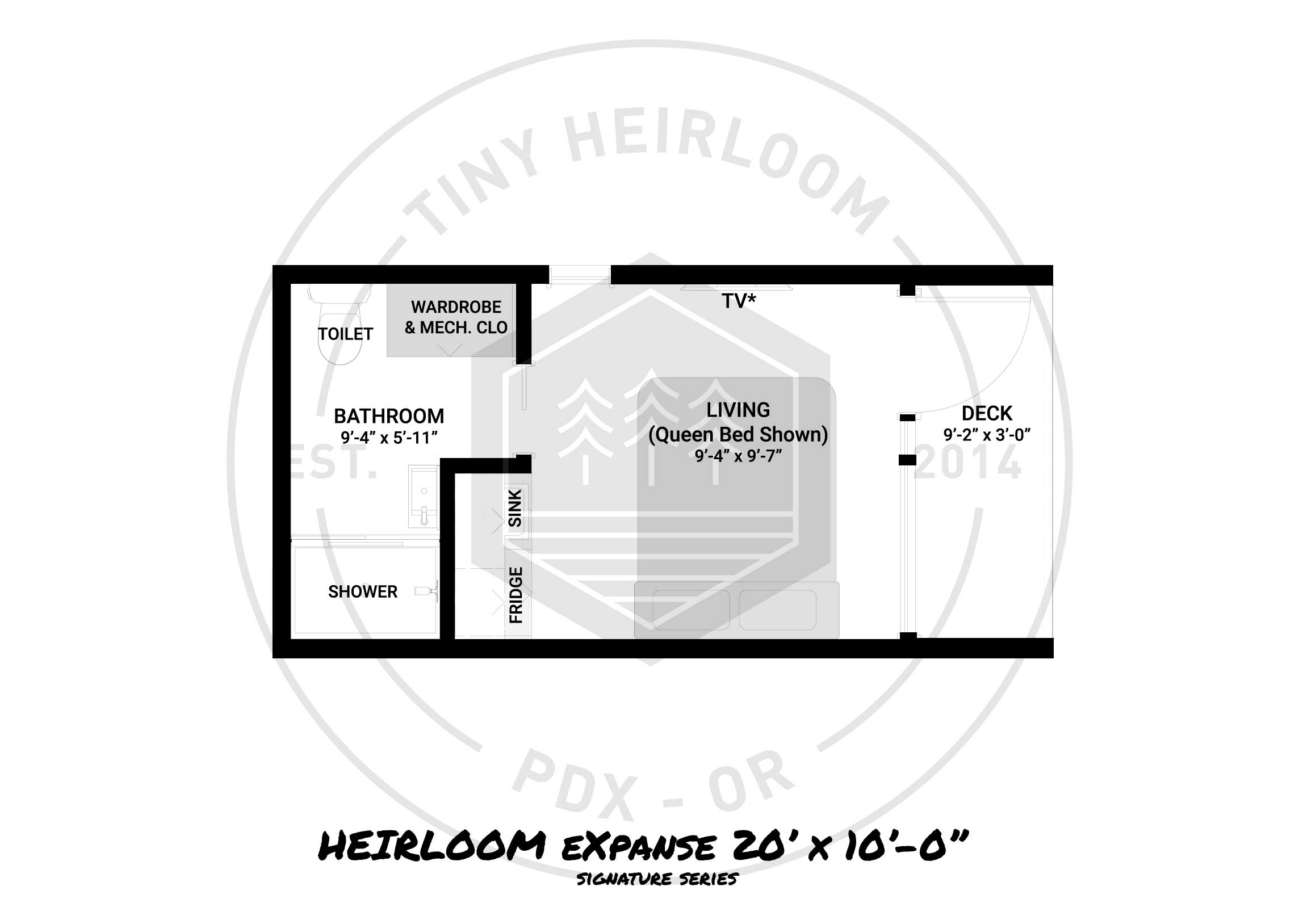

Floor Plan

Download Floor Plan
DESIGN YOUR EXPANSE

The eXpanse 2.0 Includes:

    1. Steel Skids – 8″ I-Beams
    2. Framing – 2×4 dimensional lumber; CDX plywood with shed roof and full steel structural support along all vertical walls, roofline and angular steel picking points
    3. Moisture Barrier – Zip System® rigid-panel Weather Resistant Barrier (WRB)
    4. Exterior Siding – Hardi vertical fiber cement siding, accented with thermally-modified wood
    5. Insulation – Closed-cell spray foam in roof and walls; rigid foam in floor
    6. Inside Cladding – Unpainted Natural Birch Panel
    7. Interior Finish – Low-VOC white
    8. Interior Trim – 1×4 paint grade white
    9. Windows – Black aluminum storefront; one (1) black vinyl fixed
    10. Roofing – Single-ply membrane (TPO)
    11. Flooring – Commercial grade sheet vinyl, wood pattern
    12. Cabinets – White flat cabinet doors with real plywood boxes with soft close cabinet drawer slides and hinges
    13. Hardware – Modern cabinet pulls in satin nickel
    14. Countertops – Solid surface in black
    15. Backsplash – White subway tile
    16. Appliances – Stainless finish under-counter fridge
    17. Kitchen Sink – Drop-in stainless bar sink
    18. Kitchen Faucet – Faucet with pull-down head in satin nickel
    19. Bathroom Sink – Wall-mounted porcelain sink
    20. Bathroom Faucet – Satin nickel
    21. Shower – 48” x 32” fiberglass shower pan and Kohler Choreograph wall panels, both white
    22. Shower Doors – Glass shower doors
    23. Vanity Mirror – Wall-mounted framed mirror with white frame
    24. Bathroom Exhaust Fan – On a dedicated switch, 90-120 CFM
    25. Dual-Flush Toilet – Dual-flush toilet with flange (connection to sewer or septic to be done by the client)
    26. Electric In-Wall Heaters – Two (2) Cadet in-wall heaters with a programmable thermostat; one (1) in the bedroom and one (1) in the living area
    27. Water Heater –19-gallon electric with exterior access
    28. Plumbing Connection – One (1) Freshwater Inlet
    29. Plumbing Source – One (1) Greywater Drain
    30. Power – One (1) 100A 110/115V Inlet
    31. Smoke & CO Detectors – Mounted in the kitchen ceiling
    32. Lighting – LED recessed lights throughout; two (2) LED recessed porch lights
    33. Doors – Two (2) interior pocket doors; one (1) exterior storefront door
    34. Extra Storage – Full wardrobe closet in master bedroom
    35. Two (2) Exterior Outlets – One (1) high for Christmas lights; one (1) low by the front door
    36. Certification – NFPA 1192 / ANSI A119.2 compliant (the eXpanse 2.0 can be built to meet any local IRC/ADU prefab or modular build code and under the ANSI/NFPA codes 119.2/119.5)
    37. Warranty – 1 year limited Manufacturer/Builder warranty; all 3rd party warranties provided at completion

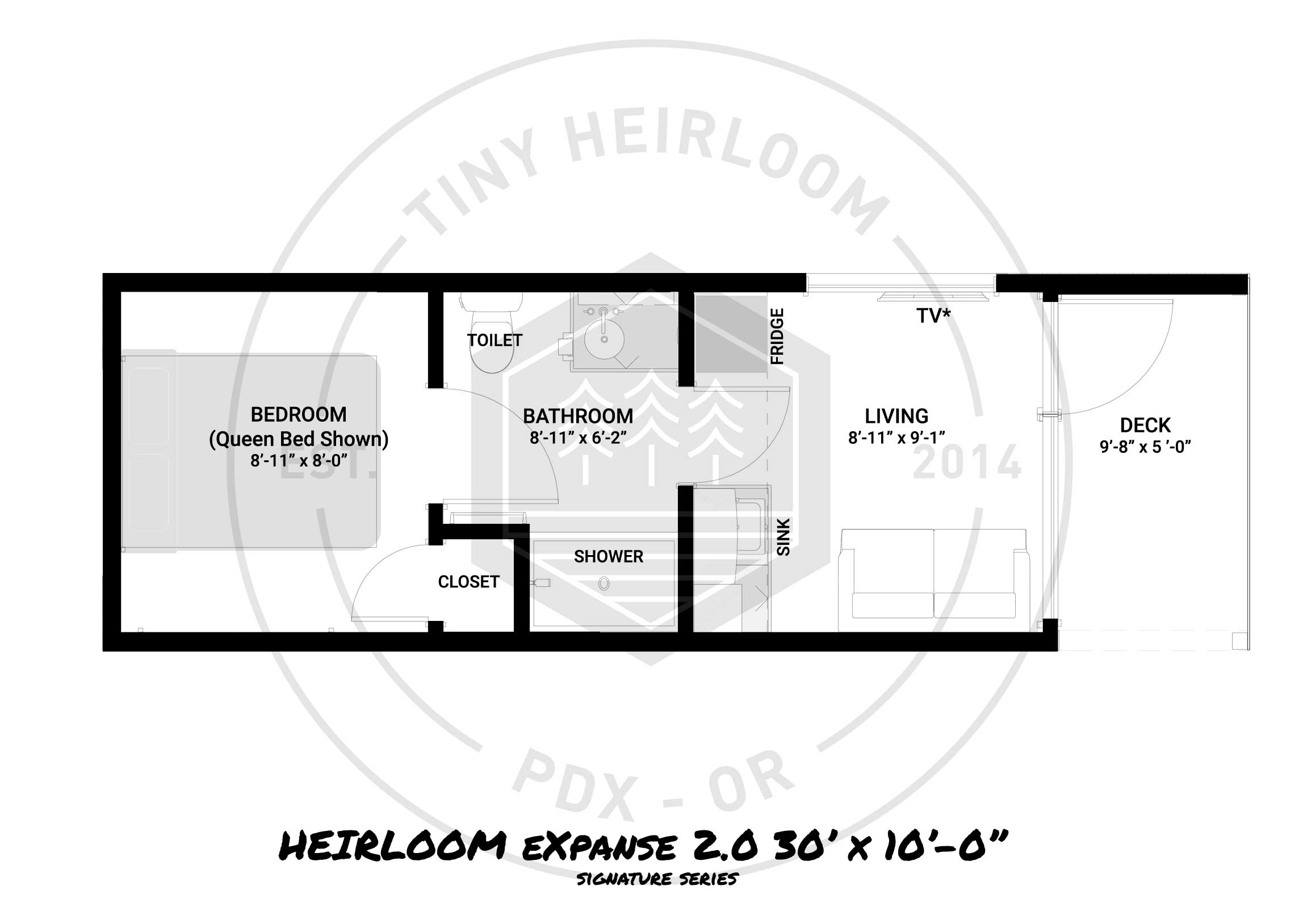

Floor Plan

Download Floor Plan
